Providing suitable models for different fields has been our consistent policy. Therefore, if you need a detailed introduction of the model in your industry, please consult our company's business personnel.
Low temperature vacuum distillation system
WSD EHC oil purifier effectively combines balanced charge purification technology, ion exchange technology and online water pollution control technology, which can effectively remove and prevent the acid substances produced in the normal operation of EHC
The quality of fire-resistant oil in steam turbine system of power plant directly affects the safe operation of fire-resistant oil system. The pollution of fire resistant oil causes the corrosion of electro-hydraulic servo valve. Wear of hydraulic servo motor and jamming failure of regulating security parts. In China, there are many abnormal operation of steam turbine and equipment failure caused by anti combustion oil quality problems.
1. Balanced charge purification technology: remove pollutants and sludge less than 3 μ M
• Submicron level purification
• Greatly improves the current filtration system
• Remove and prevent sludge and elastic oxide
• Clean the sticking dirt on the valve
• Prevent bearing failure
2.Ion exchange resin: reducing acid value and improving resistivity
• efficient acid scavenger
• does not add moisture to the system
• Improve resistivity
• Anti expansion design core does not burst
• Increase acid absorption capacity
• Long service life of module
• no need for built-in metal core
3. Fire resistant oil online water pollution control system
• prevent air pollution from entering the tank
• It can not only remove the water vapor in the top space of the oil tank, but also remove the water in the oil through dry air
• Keep the moisture content of fire-resistant oil tank below 200ppm
• Prevent the formation of acid substances and pollutants in the oil and reduce the replacement of deacidification filter
• The dry air discharged by the system makes the desiccant of the breathing valve continuously regenerate, reducing the maintenance time and labor volume of the breathing valve
• less investment cost and higher return on investment than other technologies

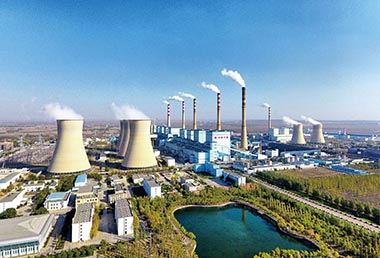

電力能源

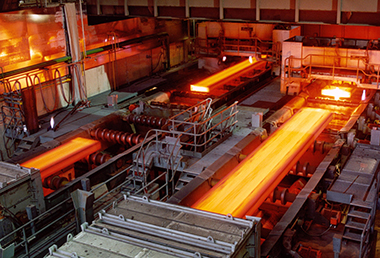

鋼鐵冶金

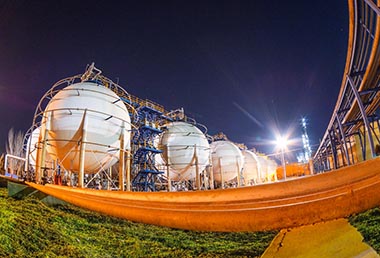

石油化工

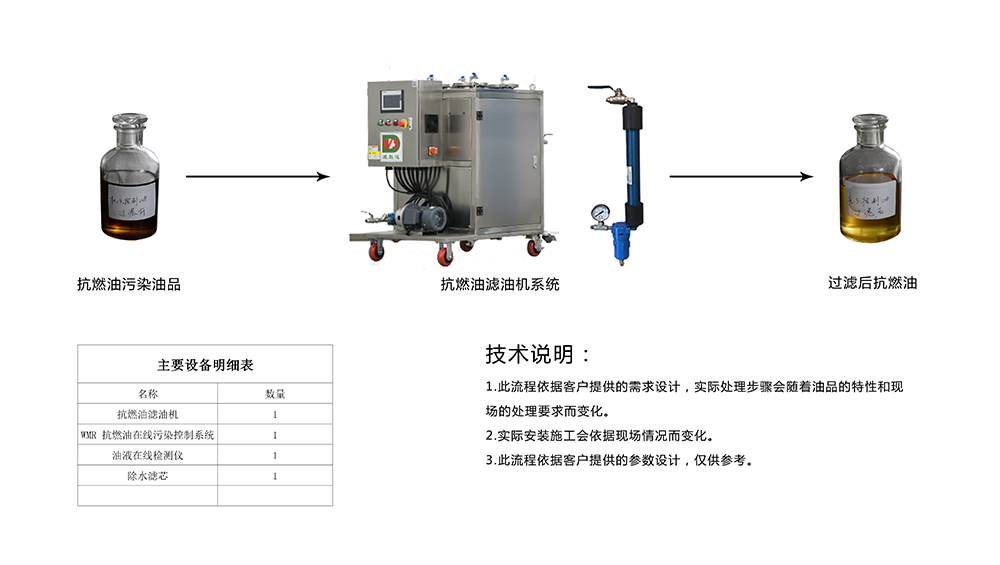

1. Balanced charge technology, through two insulating tubes with positive and negative electrodes in the mixer, particles in the oil will be charged when passing, with positive and negative charges. At the end of the mixer, two separate electrode groups are combined, and particles with positive and negative charges in the oil will attract each other, gather into a group, and finally be collected, filtered and removed by the filter.
2. Resin adsorption technology, ion exchange resin through the release of basic ions on the formation of acid oxides in the oil for functional group replacement, rapidly remove the acid substances in the oil, and reduce acid esters, to keep the oil clean.
3. With WSD WMR technology, the dry air is continuously blown into the top of the oil tank to completely remove the moisture in the oil.
